Bearings play a pivotal role in numerous mechanical systems, serving as crucial components that facilitate motion and reduce friction between moving parts. These intricate devices are fundamental in a myriad of applications, from automotive machinery to industrial equipment and household appliances. Understanding the essential components of bearings is vital to comprehend their functionality and the diverse types available. This article aims to provide an insightful overview of bearing components, shedding light on their construction, purpose, and significance in various applications.
Image: Mech Tech | Rolling Elements

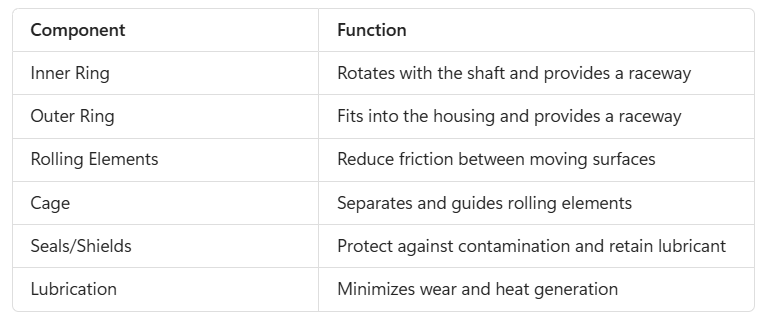

Rolling Elements
Bearings are mechanical components that are used to reduce friction between moving parts in various machines and equipment. They typically consist of an inner and outer race with rolling elements in between. These rolling elements facilitate smooth and efficient movement. The most common types of rolling elements found in bearings include:
- Ball Bearings: Ball bearings are the most widespread type of rolling element bearings. They use spheres (balls) as the rolling elements, which are usually made of steel, ceramic, or other materials. The balls distribute the load evenly, reducing friction and enabling low-friction, smooth rotation.
- Roller Bearings: Roller bearings use cylindrical or tapered rollers as the rolling elements. These bearings can handle heavier loads and are often found in applications with higher radial or axial loads. The main types of roller bearings include: Cylindrical Roller Bearings: These rollers have a cylindrical shape and are suitable for radial loads. Tapered Roller Bearings: These rollers are conical in shape and can handle both radial and axial loads. Spherical Roller Bearings: Spherical rollers can handle misalignment and heavy radial loads.
- Needle Bearings: Needle bearings, also known as needle roller bearings, use long and thin cylindrical rollers with a high length-to-diameter ratio. They are suitable for applications with limited space and can handle high radial loads.
- Tapered Roller Thrust Bearings: These bearings use tapered rollers and are designed to handle axial loads in one direction. They have a high load-carrying capacity and are often used in applications where heavy axial loads are present.
- Spherical Roller Thrust Bearings: Spherical roller thrust bearings use barrel-shaped rollers and can handle heavy axial loads and moderate radial loads. They are designed to accommodate misalignment and are commonly used in heavy-duty applications.
- Spherical Plain Bearings: Spherical plain bearings, also known as spherical plain bushings or rod ends, do not have traditional rolling elements. Instead, they use a sliding surface between two parts to allow movement in various directions while accommodating misalignment.
These different types of rolling elements in bearings are designed to cater to various load types and applications, making them an essential part of numerous mechanical systems across many industries.
Inner & Outer Races
Among the essential elements of a bearing are the inner and outer races, fundamental components that form the core structure of a bearing, contributing significantly to its functionality and durability.
- The inner race is the ring-shaped component designed to support the rotating shaft. It is mounted onto the shaft and rotates with it, providing a smooth surface for the rolling elements, such as balls or rollers, to move against. The precision of the inner race bore, where the shaft fits, is critical as it ensures proper alignment and smooth operation of the bearing. Additionally, the inner race shoulders serve as a stop for the rolling elements, preventing them from moving sideways.
- On the other hand, the outer race encases the rolling elements and maintains their position within the bearing. This ring-shaped component is usually stationary and serves as a support for the outer rings of the rolling elements, guiding their movement while maintaining the appropriate spacing between them. The outer race is designed to endure static and dynamic loads while ensuring minimal friction between itself and the rolling elements.
Both the inner and outer races are typically made from high-quality steel to withstand heavy loads, high speeds, and harsh operating conditions. They undergo precise machining and heat treatment processes to enhance their hardness, durability, and resistance to wear and fatigue.
The interaction between the inner and outer races, along with the rolling elements, enables bearings to function efficiently by reducing friction and facilitating smooth rotation. Proper maintenance, including regular lubrication and inspection, is crucial to ensure the longevity and optimal performance of the inner and outer races within bearings.
Image: Factory Handling & Solutions | Cages
Cage
A cage (also known as a retainer or separator) is a critical component that is used to keep the balls evenly spaced and separated within the bearing's inner and outer rings. The primary purpose of the cage is to prevent the balls from making contact with each other, which could result in increased friction, premature wear, and potential damage to the balls or the bearing itself.
Cages are typically made of materials such as steel, brass, or engineered plastics. The choice of material depends on the specific application requirements, including factors like speed, temperature, and the presence of corrosive elements. The nomenclature within the part number lets you know what type of cage the bearing has.
Ball bearings with cages offer several advantages:
- Even Distribution of Load
- Reduced Friction
- Improved Lubricant Retention
- Noise Reduction
Cages play a vital role in ball bearings by maintaining proper ball spacing, enhancing load distribution, reducing friction, and extending the bearing's overall service life. They are essential for ensuring smooth and efficient operation.
Single Row Radial Ball Bearings Open, Shielded & Sealed
Shields & Seals
Radial ball bearings are commonly used in various applications to support radial loads and enable smooth rotation. Seals and shields are an essential component of these bearings as they help protect the bearing from contaminants, retain lubrication, and extend the bearing's lifespan. There are several types of seals used for radial ball bearings, and some of the common ones include:
- Metal Shields: Metal shields, also known as metal plates or metal caps, are made of steel or other metals. These shields cover the outer race of the bearing and provide protection against large particles and some types of debris. They are non-contact seals, meaning they do not physically touch the inner race of the bearing, resulting in minimal friction.
- Rubber Seals: Rubber seals are made of synthetic rubber materials, such as nitrile, silicone, or fluoroelastomers. These seals are molded to fit around the outer race of the bearing and form a contact seal with the inner race. Rubber seals are effective in keeping out dirt, dust, and water, providing better protection compared to metal shields. They are commonly used in environments where contamination is a concern.
- Contact Seals: Contact seals are similar to rubber seals but are often made from different materials like thermoplastics or urethane. These seals have direct contact with the inner race of the bearing, creating a more effective barrier against contaminants. They offer improved protection compared to non-contact seals like metal shields.
- Felt Seals: Felt seals are composed of compressed felt material and are used in applications where moderate protection against contaminants is required. They are often found in low-speed or lightly loaded bearing applications.
- Labyrinth Seals: Labyrinth seals consist of multiple non-contact barriers that create a tortuous path for contaminants trying to reach the bearing. They are designed to allow for some airflow while offering a level of protection against debris.
- Double Seals: Some radial ball bearings come with double seals, which means they have two seal barriers. Double seals provide an extra layer of protection and are particularly useful in applications where exposure to harsh environments is expected.
It's important to choose the appropriate seal type based on the specific application requirements, such as the operating environment, speed, and expected contamination levels. Each seal type has its advantages and limitations, and selecting the right seal can significantly impact the bearing's performance and service life.
Tapered Roller Bearing Spacers
Spacers
Spacers are used in ball bearings to maintain precise distances between the balls, ensuring proper alignment and load distribution. The different types of spacers used in ball bearings include:
- Ball Retainers: Ball retainers, also known as ball cages or ball separators, are used to keep the balls evenly spaced and separated from one another. They are typically made of materials like brass, plastic, or steel. Ball retainers are commonly used in deep groove ball bearings and angular contact ball bearings.
- Axial Spacers: Axial spacers are used to control axial play or end play in a ball bearing assembly. These spacers are positioned between the inner or outer races and the balls. By adjusting the thickness of the axial spacer, the axial clearance of the bearing can be controlled.
- Radial Spacers: Radial spacers, also known as inner race spacers or outer race spacers, are placed between the balls and the inner or outer races of the bearing. They maintain a consistent radial distance between the balls, providing stability to the bearing.
- Preload Spacers: Preload spacers are used in precision ball bearings to apply a controlled amount of axial load or preload to the bearing. Preloading the bearing eliminates any internal clearance, ensuring there is no play between the balls and races. This is important for high-precision applications.
- Conical Spacers: Conical spacers are designed in the shape of a cone and are used to adjust the axial clearance of tapered roller bearings. By changing the position of the conical spacer, the preload and clearance of the bearings can be altered.
- Snap Ring Spacers: Snap ring spacers are circular rings with a small section removed, allowing them to be snapped into grooves on the inner or outer races of a bearing. These spacers help maintain ball position and prevent lateral movement within the bearing.
It's important to note that the specific types of spacers used in a ball bearing depend on the design and intended application of the bearing. Different industrial applications and machinery may require different types of spacers to optimize the performance and longevity of the ball bearings.
FAG Tapered Roller Bearing
Tapered Roller Bearings - Cups
Cups are one of the two main components that make up a tapered roller bearing assembly. The other component is the cone. Together, the cone and cup form a complete tapered roller bearing that is used to support axial and radial loads.
The cup is the outer ring of the tapered roller bearing. It is a circular, cup-shaped component with a raceway (also known as the outer race) on its inner surface. The raceway is where the tapered rollers make contact and roll during operation.
There are different types of tapered roller bearing cups, and they vary based on factors such as design, material, and application.
- Single-cup is designed to be used with a corresponding single-cone (inner ring). The single-cup has one raceway (outer race) on its inner surface, which matches the raceway of the corresponding cone.
- Double-cup has two raceways (outer races) on the inner surface. They are used with double-cones, also known as double-row tapered roller bearings. Double-cups allow for increased load-carrying capacity and stability in applications where higher radial and axial loads need to be accommodated.
- Flanged-cups have an extended flange on one side of the cup, providing additional support and alignment for the bearing when it is installed in its housing. The flange can simplify the bearing assembly process and reduce the need for separate bearing end caps.
- Heavy-Duty Cups are designed to handle exceptionally high loads and severe operating conditions. They are made from durable materials and often have a thicker cross-section to enhance their strength and longevity.
- Precision Cups are manufactured to strict tolerance standards, resulting in consistent and accurate dimensions. These cups are used in precision applications where precise bearing operation and performance are crucial.
- Corrosion-Resistant Cups are made from materials like stainless steel or coated with anti-corrosion treatments. They are used in environments where exposure to moisture, chemicals, or other corrosive agents may be a concern.
- Non-Standard Cup: In some specialized applications, custom or non-standard cups may be required to meet specific design or performance requirements.
It's important to use the appropriate type of tapered roller bearing cup that matches the corresponding cone (inner ring) to ensure proper functioning and optimal performance. Choosing the right cup design, material, and quality is essential to achieve reliable and efficient operation in various industrial, automotive, and other mechanical applications.
NSK Tapered Roller Bearing
Tapered Roller Bearings - Cones
Tapered roller bearing cones are a type of rolling element bearing commonly used in various applications to handle both radial and axial loads. These bearings consist of an inner raceway (cone), an outer raceway (cup), a cage, and tapered rollers. The tapered shape of the rollers allows for efficient distribution of loads along the surfaces of the raceways.
The main types of tapered roller bearing cones are classified based on their design and construction:
- Single-row tapered roller bearing cones: This is the most basic and widely used type of tapered roller bearing cone. It consists of a single set of tapered rollers between the inner and outer raceways.
- Double-row tapered roller bearing cones: In this type, there are two sets of tapered rollers arranged in two rows between the inner and outer raceways. This design provides increased load-carrying capacity and higher radial and axial stiffness.
- Four-row tapered roller bearing cones: Four-row tapered roller bearings have four sets of tapered rollers arranged in two pairs of inner and outer raceways. These bearings can handle extremely heavy radial and axial loads and are often used in rolling mill applications.
- Multi-row tapered roller bearing cones: Multi-row tapered roller bearings can have various configurations with more than four rows of tapered rollers. They are used in specialized applications where high load-carrying capacity is required.
- Inch and metric series: Tapered roller bearing cones come in both inch and metric dimensions, depending on the region and standard used. The basic design principles remain the same, but the dimensions may differ.
- Special designs: Some manufacturers may offer specialized tapered roller bearing cones for specific applications, such as bearings with custom coatings or materials to enhance performance in challenging environments.
It's important to note that tapered roller bearing cones are typically used in conjunction with matching cups (outer raceways) to form a complete tapered roller bearing assembly. When selecting tapered roller bearing cones, it's crucial to consider factors such as load capacity, speed, application requirements, and compatibility with the associated cup.
As the unsung heroes of machinery, bearings and their essential components form the backbone of countless mechanical systems, enabling everything from the smooth rotation of wheels in vehicles to the precise movements of industrial machinery.
The intricate interplay between elements like the inner and outer races, alongside various other components, illustrates the engineering marvels that facilitate motion while reducing friction. Appreciating the significance of these fundamental components not only enhances our understanding of mechanical systems but also underscores the importance of proper maintenance and care. With this knowledge, industries can continue to harness the power of bearings, ensuring the efficient and reliable operation of equipment across the spectrum of modern technology.
